Creating precision metal components without excessive waste challenges engineers across every industry. Powder metallurgy parts solve this problem by transforming fine metal powder into durable, near-net-shape components. This guide explores the technology and how to source quality components effectively.
What is Powder Metallurgy Parts

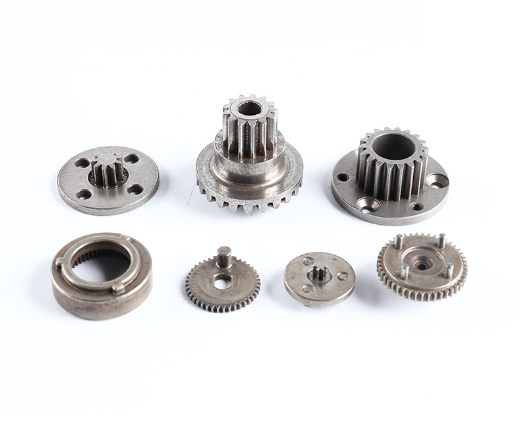

Powder metallurgy parts are metal components manufactured by compacting fine metallic powder under extreme pressure and then heating the compact in a controlled atmosphere furnace. The powder does not melt completely during the process. Instead, the individual particles bond together at temperatures just below the melting point through atomic diffusion. This creates a solid, durable component with precise dimensions and useful mechanical properties.
The process begins with blending metal powder with alloying elements and lubricants. This mixture flows into a precision die where punches apply enormous pressure to form a green compact. The compact then passes through a sintering furnace where heat fuses the particles permanently. The result is a near-net-shape part requiring minimal finishing. Powder metallurgy parts range from tiny gears weighing a few grams to large structural brackets exceeding several kilograms. Industries including automotive, aerospace, medical devices, and consumer products depend on these components daily.
Specifications of Powder Metallurgy Parts
Understanding these critical specifications ensures you select the right components for your application. Each parameter affects performance and manufacturing cost.
Density Level
Density measures how much solid metal fills the part volume. It is expressed as grams per cubic centimeter or as a percentage of theoretical density. Standard single-press powder metallurgy parts achieve 80 to 90 percent density. Higher density means greater tensile strength, fatigue resistance, and ductility. For demanding structural applications, double-press double-sinter processes push density above 92 percent. Copper infiltration fills interconnected porosity for even higher strength. Discuss your mechanical requirements with the manufacturer so they specify the appropriate processing route.
Material Grade and Alloy Composition
The powder composition determines strength, hardenability, wear resistance, and corrosion performance. Iron-carbon grades suit general structural applications. Iron-copper-carbon alloys offer improved strength through copper melting during sintering. Nickel-steel grades provide superior toughness and fatigue resistance. Stainless steel powders like 316L deliver corrosion resistance for medical and marine environments. Soft magnetic materials serve in sensor and actuator applications. Selecting the right material is critical for powder metallurgy parts to meet functional requirements.
Dimensional Tolerance
As-sintered tolerances typically range from plus or minus 0.05 to 0.1 millimeters depending on part size and geometry. A secondary sizing or calibration operation improves precision to plus or minus 0.01 millimeters on critical dimensions. The tolerance class required directly affects manufacturing cost. Specifying tighter tolerances than functionally necessary increases per-part cost without adding value. Always specify only the precision your design truly needs for powder metallurgy parts to perform their function.
Surface Finish and Edge Quality
As-sintered surfaces have a matte texture suitable for oil retention in bearings. Sizing operations burnish surfaces to a smooth, shiny finish. Additional processes like tumbling, vibratory finishing, or electropolishing further improve surface quality. Edge condition matters equally. Sharp burrs interfere with assembly and cause stress concentrations. Powder metallurgy parts require proper deburring and edge rounding as standard finishing steps.
Mechanical Properties
Tensile strength, yield strength, hardness, and fatigue resistance depend on density, material grade, and heat treatment. Standard powder metallurgy parts achieve tensile strengths comparable to cast iron. High-density processing with heat treatment approaches wrought steel properties. Impact toughness is generally lower than wrought materials due to residual porosity. Surface densification dramatically improves contact fatigue resistance on gear flanks and bearing journals.
How to Find a Supplier for Powder Metallurgy Parts
Selecting the right manufacturing partner requires systematic evaluation. Follow these steps to identify a supplier who delivers consistent quality.
Step 1: Define Your Part Requirements Completely
Document every specification before contacting any supplier. Provide detailed dimensional drawings with tolerances. Specify the material grade, required density, and mechanical properties. Note your expected annual volume honestly. Include any secondary operations such as heat treatment, plating, or machining. Complete documentation enables accurate quoting. Reputable suppliers of powder metallurgy parts appreciate well-prepared buyers.
Step 2: Verify Equipment Capability and Capacity
Ask about the press tonnage range and type available. Hydraulic presses with multiple independent platens handle complex multi-level geometries. Mechanical presses excel at high-speed production of simpler shapes. The press capacity determines the maximum part size and achievable density. Inquire about sintering furnace technology. Continuous mesh-belt furnaces suit high volumes. Vacuum furnaces provide superior atmosphere control for stainless steels.
Step 3: Evaluate Tooling Design and Manufacturing Expertise
Tooling quality directly determines part quality. Ask whether the supplier designs and builds tooling in-house. In-house toolmaking enables faster development and responsive troubleshooting. The tooling must compensate precisely for sintering shrinkage while achieving required dimensional tolerances. Review their experience with tooling similar to your part geometry. Skilled producers of powder metallurgy parts solve tooling challenges before production begins.
Step 4: Assess Material and Alloy Options
Confirm the supplier processes the materials your part requires. Standard iron-carbon and iron-copper-carbon alloys suit general structural applications. Stainless steel powders provide corrosion resistance. Nickel-steel grades offer superior toughness. Soft magnetic materials serve in electromagnetic applications. Versatile manufacturers offer multiple material families and can recommend the optimal alloy for your operating conditions.
Step 5: Review Quality Systems and Certifications
Verify relevant certifications. ISO 9001 is the minimum baseline. IATF 16949 certification demonstrates automotive-grade quality management. ISO 13485 covers medical device manufacturing. AS9100 applies to aerospace applications. Inspect their metrology equipment including coordinate measuring machines and optical comparators. Request a sample First Article Inspection Report to evaluate documentation quality.
Step 6: Evaluate Secondary Processing Capabilities
Powder metallurgy parts often require finishing operations. Ask which services the supplier handles in-house. Heat treatment hardens surfaces for wear resistance. Steam treatment creates a protective magnetite layer. Oil impregnation provides self-lubrication for bearings. CNC machining refines critical features. Resin impregnation seals porosity for pressure-tight applications. Vertically integrated suppliers provide single-source accountability.
Step 7: Request Prototype Samples and Test Thoroughly
Order prototype parts before committing to full production tooling. Test dimensional accuracy and mechanical properties in your actual assembly. Run durability tests if the application demands it. Verify corrosion resistance and surface finish quality. Prototype testing reveals issues that drawings and specifications cannot predict. Confident suppliers welcome prototype orders and support your validation process.
Step 8: Check References and Long-Term Reliability
Request references from clients with similar part requirements. Contact those references and ask about quality consistency, on-time delivery performance, and responsiveness to issues. Review case studies demonstrating success with comparable components. Suppliers with long-standing customer relationships demonstrate reliability and deep industry expertise.
Related: The Complete Manufacturing Cycle for Powder Metallurgy Parts
Understanding how these components are manufactured helps you design items that fully leverage the technology’s capabilities.
The cycle begins with powder selection and blending. Base iron powder mixes with alloying additions such as copper, nickel, graphite, and molybdenum. A solid lubricant, typically zinc stearate, coats the particles to reduce friction during compaction. Thorough blending ensures uniform distribution of all constituents. Consistent powder characteristics including particle size distribution and flow rate are essential for repeatable quality in powder metallurgy parts.
Compaction transforms loose powder into a green compact with the exact part shape. The prepared powder flows into a precision die cavity. Upper and lower punches enter the die and apply pressure ranging from 400 to 800 megapascals for ferrous materials. The powder particles deform plastically at their contact points and mechanically interlock. Complex parts require sophisticated tooling with independently controlled punch movements. The resulting green compact has sufficient strength for careful handling but remains brittle.
Sintering creates permanent metallurgical bonds. Green compacts travel through a continuous furnace under a protective nitrogen-hydrogen atmosphere. The first zone gently removes the pressing lubricant. The high-heat zone reaches 1100 to 1150 degrees Celsius where atomic diffusion welds the particles together. Copper additions melt and flow through the iron skeleton, strengthening the structure. Precise atmosphere control prevents oxidation and maintains the specified carbon content.

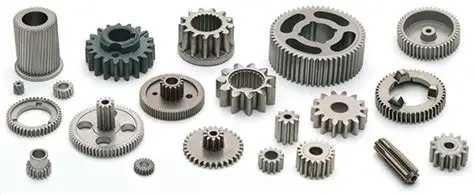

Sizing achieves final dimensional precision. The sintered part is repressed in a finishing die to correct thermal distortion. This step also burnishes surfaces, improving smoothness. For gear teeth, sizing achieves the required quality class. For bearing bores, sizing produces the specified roundness and diameter tolerance. Quality-focused manufacturers consider sizing essential for tight tolerances on powder metallurgy parts.
FAQ: Your Powder Metallurgy Parts Questions Answered
1. How do powder metallurgy parts compare in strength to machined or cast components?
Modern high-density powder metallurgy parts with density above 92 percent can match the tensile and fatigue strength of cast iron and approach machined steel properties. Surface densification techniques close pores on critical surfaces, achieving contact fatigue resistance comparable to wrought materials. The isotropic grain structure provides uniform properties in all directions, unlike the directional grain of machined bar stock.
2. What is the typical lead time for custom powder metallurgy parts?
Tooling design and fabrication requires six to ten weeks for the initial die set. Prototype sample production adds two to three weeks including pressing, sintering, and secondary operations. After prototype approval, production quantities ship within three to five weeks. Complex multi-level parts with extensive finishing require additional time. Discuss lead times early with your supplier and include buffer in your project schedule.
3. Can powder metallurgy parts be welded to other steel components?
Welding requires careful preparation due to internal porosity. Trapped gases within pores can release during welding and cause porosity in the weld bead. High-density processing above 93 percent minimizes this issue. Alternatively, the weld zone can be infiltrated with copper to seal pores before welding. Discuss welding requirements during the design phase so appropriate density levels can be specified.
Conclusion
Powder metallurgy parts deliver an unbeatable combination of material efficiency, precision, and design flexibility for modern manufacturing. By understanding critical specifications and following a structured supplier selection process, you can find a partner who delivers consistent quality and acts as a true engineering collaborator. Pay careful attention to design guidelines, density requirements, and secondary processing needs to ensure manufacturing success. Whether you need automotive powertrain components, medical instrument parts, or industrial machinery bearings, the right supplier provides reliable, high-performance powder metallurgy parts that stand the test of time.
